0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: JIAJUE
หมายเลขรุ่น: D12
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: Please send mail or WhatsApp
รายละเอียดการบรรจุ: 0414702014 VOE3836007 3836007 หัวฉีดน้ำมันเชื้อเพลิงดีเซลสำหรับเครื่องยนต์ D12 บรรจุในบรรจุส่งออกมาต
เวลาการส่งมอบ: 1 วันทำการ
เงื่อนไขการชำระเงิน: L/C,D/A,D/P,T/T,เวสเทิร์นยูเนี่ยน,
สามารถในการผลิต: 1,000 ชิ้น / เดือน
ข้อมูลรายละเอียด
หมายเลขชิ้นส่วน: 0414702014 โวอี3836007 3836007 ขั้นต่ำ: 1
เน้น:

Diesel fuel injector for Engine D12

,

VOE3836007 fuel injector replacement

,

D12 engine diesel injector


รายละเอียดสินค้า

0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12
Product Overview

0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12

Product Specifications
Product NameFuel Injector
Part Number0414702014 VOE3836007 3836007
Brand NameJIAJUE
ModelD12
AvailabilityRich Stock
Approximate Weight4KG
Size (for 1pc)20cm x 5cm x 8cm
Delivery MethodsDHL FedEx TNT UPS
Warranty3 months
ShipmentDispatched within 24-48 hours

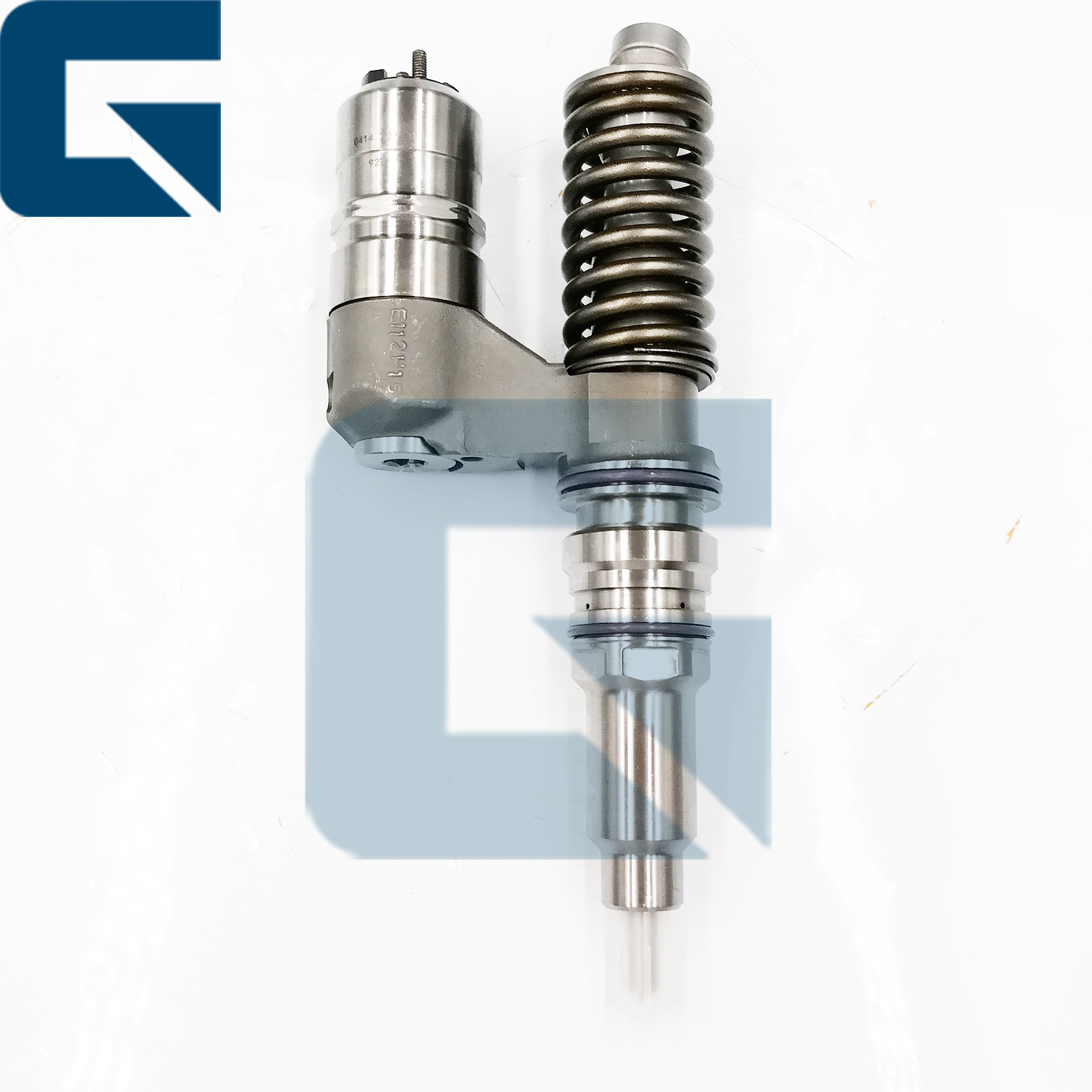

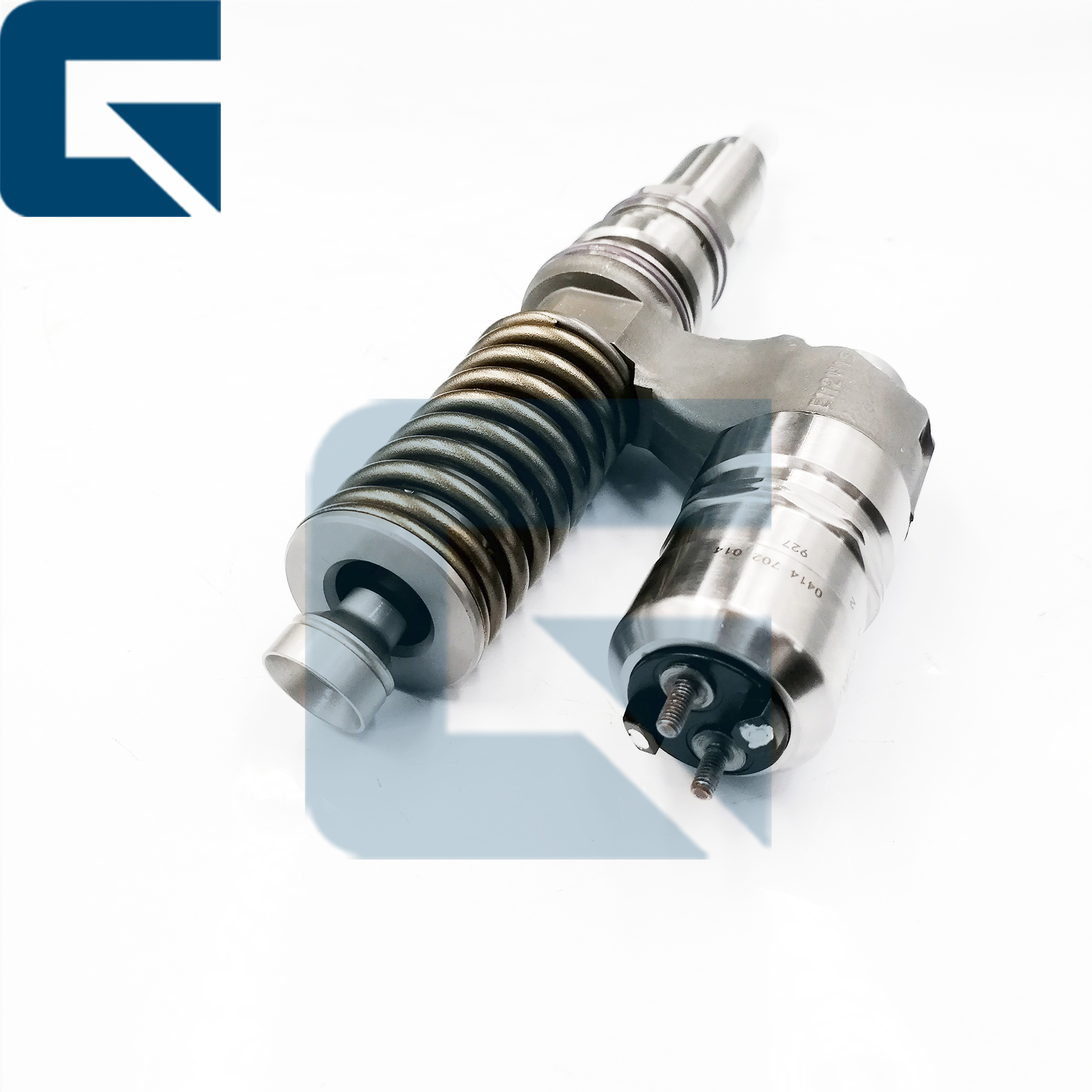

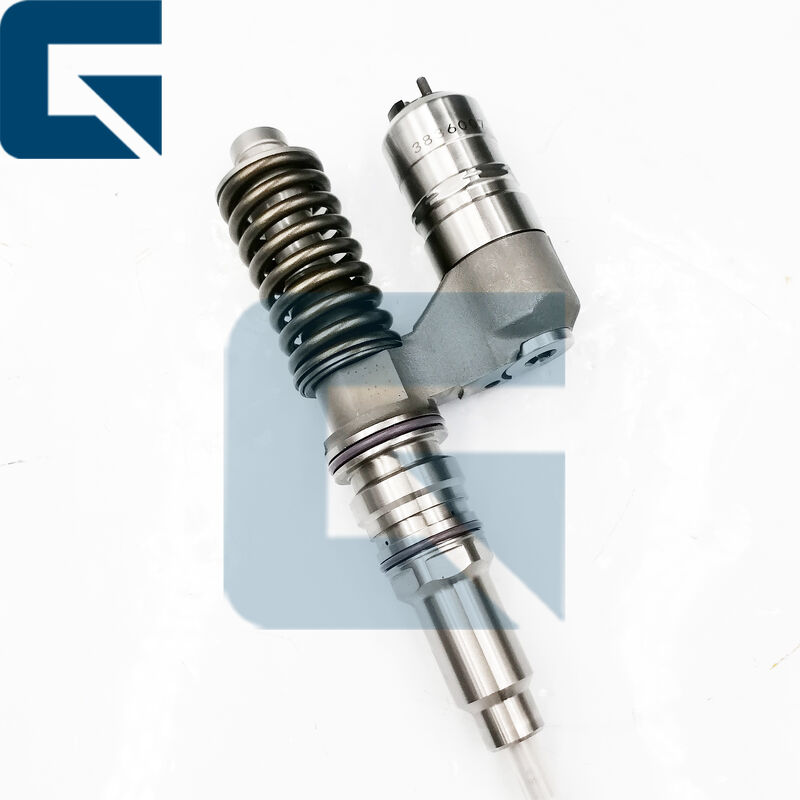

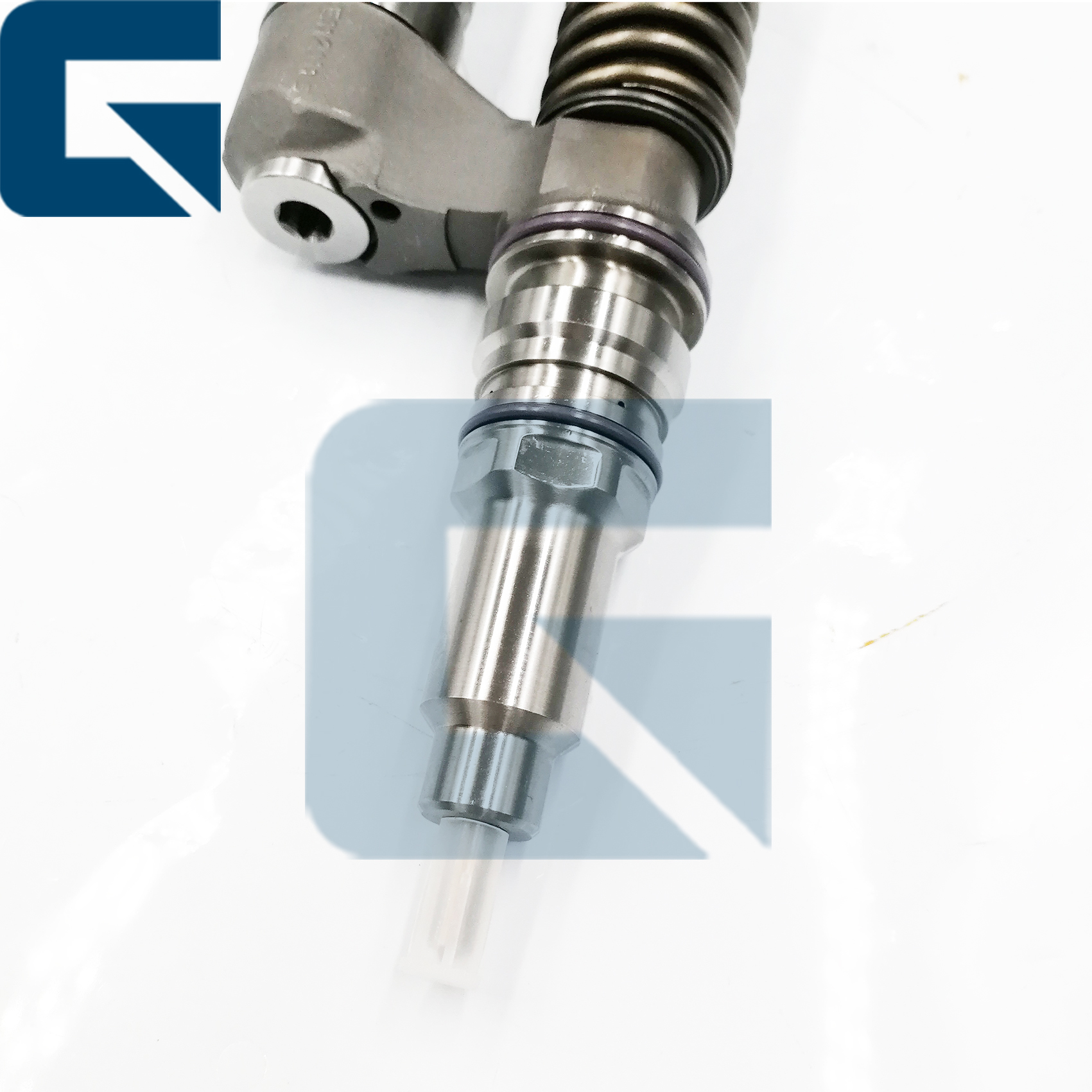

Product Photos & Testing
0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 00414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 10414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 20414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 3
Related Products
0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 4
Frequently Asked Questions
Q1: How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains very detailed installation instructions for how to install the injector.
Q2: What precautions should I take before installing 0414702014 VOE3836007 3836007 fuel injector?
The installation environment must be dust-free; the O-ring must be lubricated with clean machine oil before installation to prevent oil leakage caused by cutting the O-ring during installation; and remember to check that the O-ring is installed correctly.
Q3: Why is my engine still unusable after replacing the fuel injector?
This is common, due to air trapped in the high-pressure oil rail. Please cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize the pressure.
Q4: Is my device compatible with this part number of fuel injectors?
If you're not sure if this fits your machine, please send us your Engine Serial Number (ESN) for free verification.
Q5: How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), cylinders are shut off one by one, and engine speed fluctuations are observed to locate the faulty cylinder.
  • Fuel Rail Pressure Test: Check for internal leaks that prevent the system from building up the critical pressure required for starting.
  • Back-leakage Test: Excessive back-leakage usually indicates severe wear of the internal control valve assembly.
  • Visual Inspection: Inspect the fuel injector nozzles for carbon buildup, blockage, or corrosion.
Q6: How long will it take to receive my package after I make the payment?
This depends on your country and region, and the customs clearance time in your country. Please feel free to contact us and send us your address and postal code so we can check shipping costs and estimate delivery time for you.
Step-by-Step Installation Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Preparation: Clean the injector bores thoroughly. Ensure there is no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for any signs of pitting or erosion.
  2. Lubrication: Apply clean engine oil to the three O-rings and the backup rings. Warning: Never use grease. Only use clean engine oil to ensure the seals slide in without tearing.
  3. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  4. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Note: Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  5. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM to ensure precise fuel delivery synchronization.
Troubleshooting Guide
IssueRoot CauseSolution
Black SmokePoor spray atomization or a stuck needle valve can cause dripping.Inspect the air filter.
Hard StartInternal leakage in the injector can lead to insufficient starting oil pressure.Inspect the injector O-rings and internal seals.
Engine MisfireA faulty solenoid valve coil or worn internal valve components can cause this.Inspect the wiring harness connections and replace any damaged injectors.
Company Profile
0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 5
Exhibition
0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 60414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 7
Factory Environment
0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 8
Packaging & Shipping
0414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 90414702014 VOE3836007 3836007 Diesel Fuel Injector for Engine D12 10
