บ้าน > ผลิตภัณฑ์> อีซียูคอนโทรลเลอร์> 21N7-32101 Controller ECU for R250LC-7 Excavator

21N7-32101 Controller ECU for R250LC-7 Excavator

ข้อมูลพื้นฐาน

สถานที่กำเนิด:	จีน
ชื่อแบรนด์:	Jiajue
หมายเลขรุ่น:	R250LC-7

จำนวนสั่งซื้อขั้นต่ำ:	1 ชิ้น
ราคา:	$800/pc
รายละเอียดการบรรจุ:	21N7-32101 ECU ควบคุมสำหรับ R250LC-7 Excavator บรรจุในบรรจุส่งออกมาตรฐานภายใต้ความต้องการของลูกค้า
เวลาการส่งมอบ:	1-5 วันทำการ
เงื่อนไขการชำระเงิน:	L/C, D/A, D/P, T/T ตะวันตกสหภาพ
สามารถในการผลิต:	100 ชิ้น / เดือน

ราคาถูกที่สุด ติดต่อตอนนี้

ข้อมูลรายละเอียด

ชื่อสินค้า:	21N7-32101 ECU ควบคุมสำหรับ R250LC-7 Excavator	วัสดุ:	เหล็ก
สถานที่กำเนิด:	กวางตุ้ง จีน	ขั้นต่ำ:	1
OEM:	สนับสนุน
เน้น:	R250LC-7 excavator ECU controller , 21N7-32101 excavator controller , ECU controller for excavator

รายละเอียดสินค้า

21N7-32101 Controller ECU for R250LC-7 Excavator

High-quality replacement controller ECU specifically designed for R250LC-7 excavators, ensuring optimal performance and reliability.

Product Specifications

Product Name	Controller
Part Number	21N7-32101
Brand Name	JIAJUE
Model	R250LC-7
Condition	New
Availability	Rich Stock
Approximate Weight	2KG
Size (per unit)	35cm x 20cm x 8cm
Delivery Time	Usually delivered within 1-3 days after payment

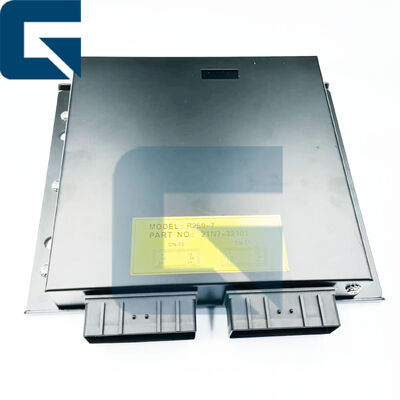

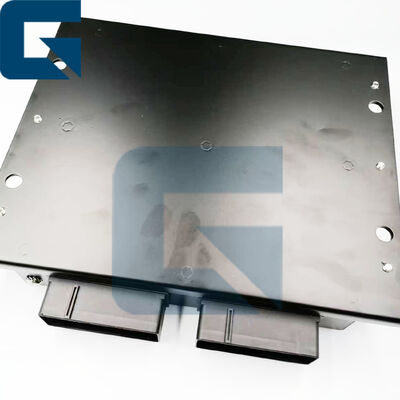

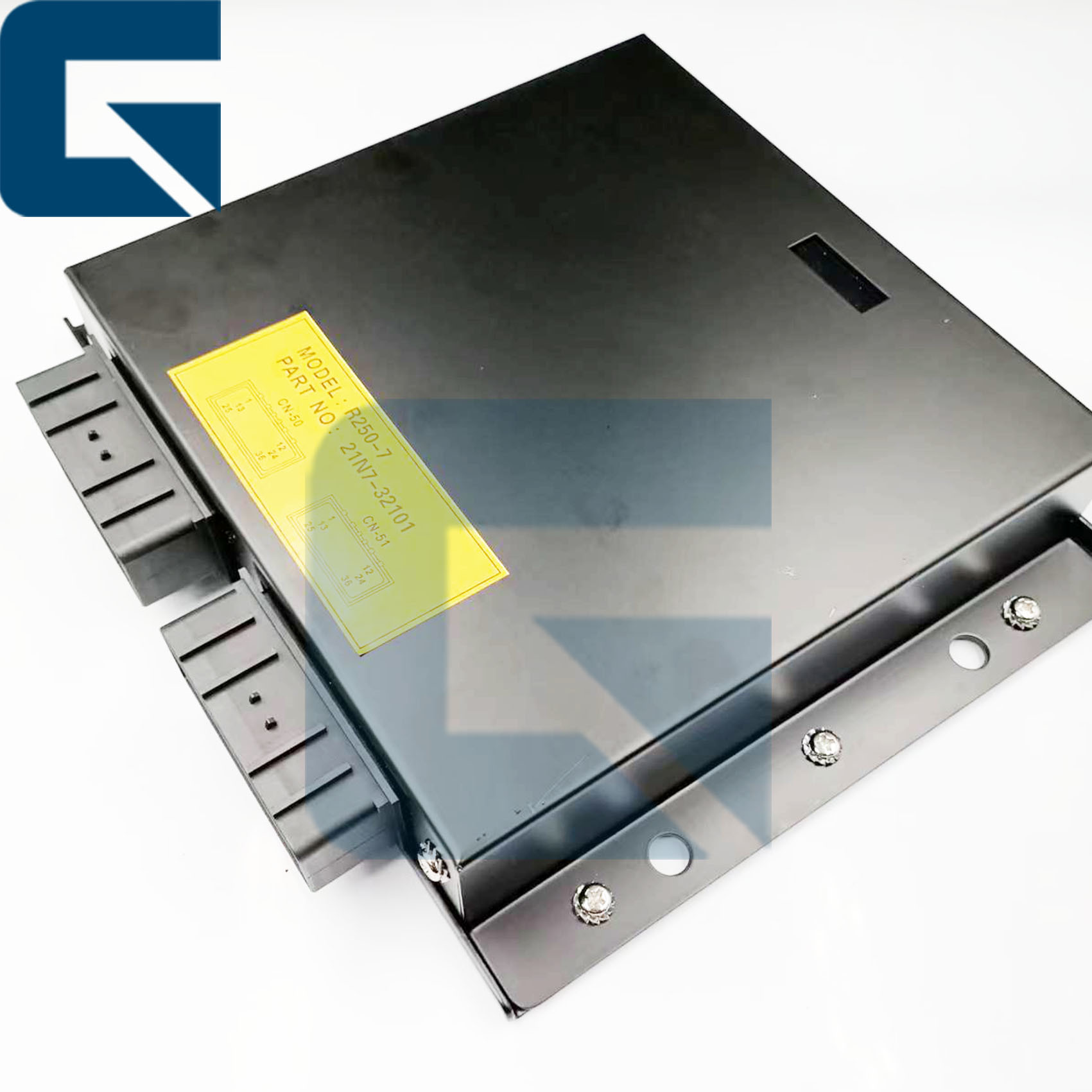

Product Images

Related Products

Frequently Asked Questions

Q1: How long does it take to install the ECM on machine?

Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
Programming & Testing: 30-60 minutes.
Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.

Q2: How to determine if the ECM is faulty and needs replacement?

The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.

Q3: What's your payment method?

Our payment methods include T/T, L/C, PayPal, etc.

Q4: Do you have stock?

Rich stock available.

Q5: How can I know my order is already shipping?

When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

Step-by-Step Testing Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
Inspect: Check the ECU for physical damage or loose connections.
Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
Document: Keep a record of all tests, codes, and results for future reference.

Quick Checklist for Buyers

Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
