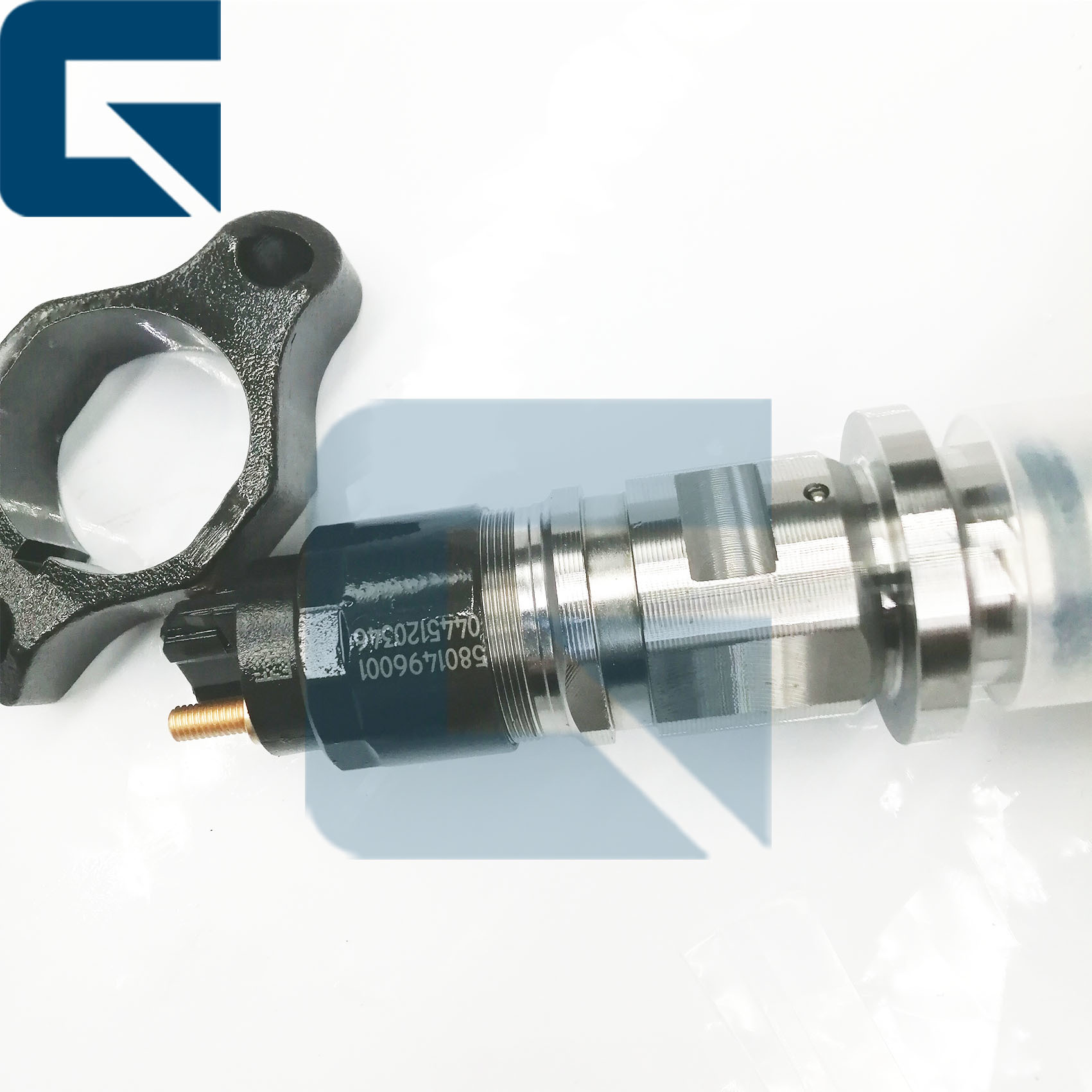

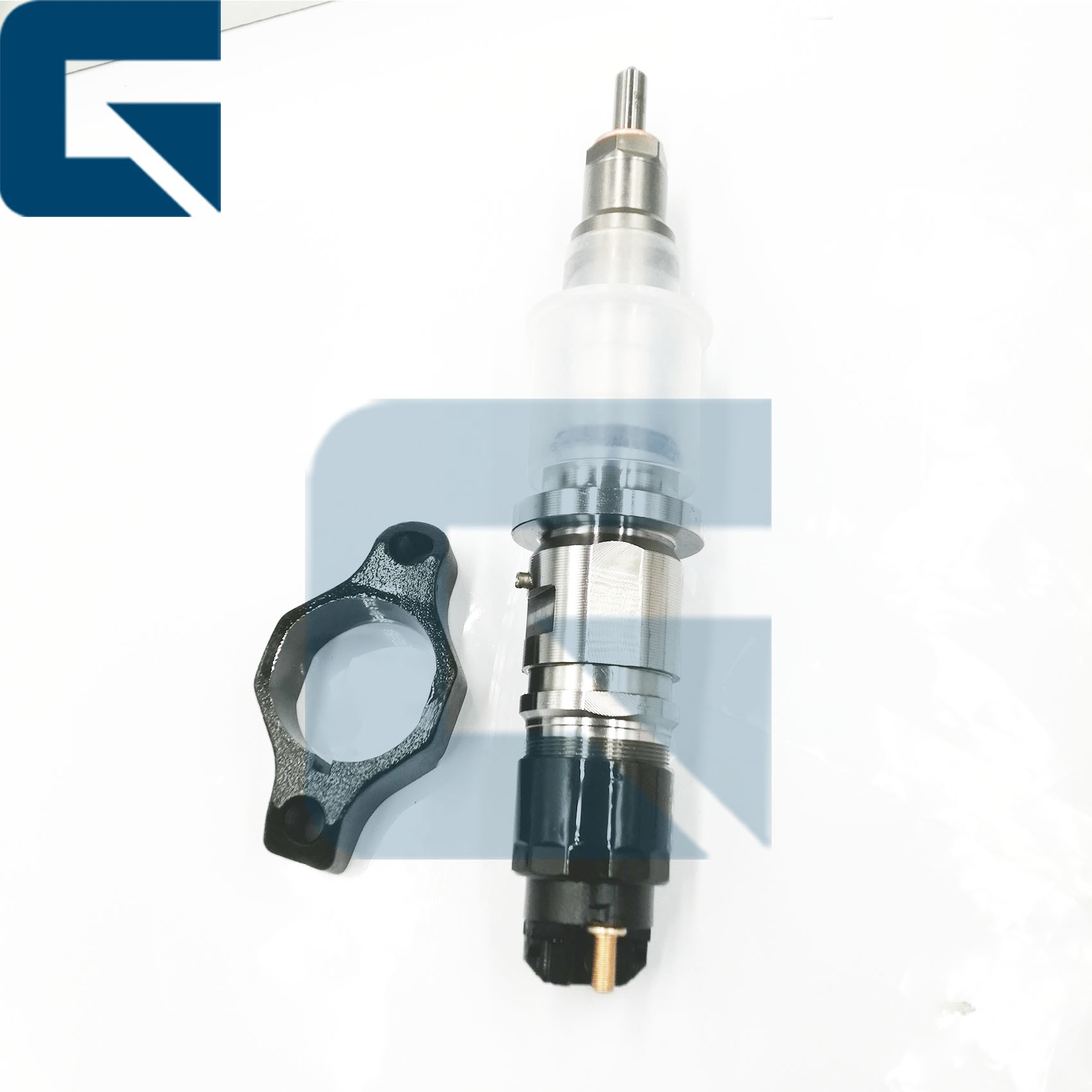

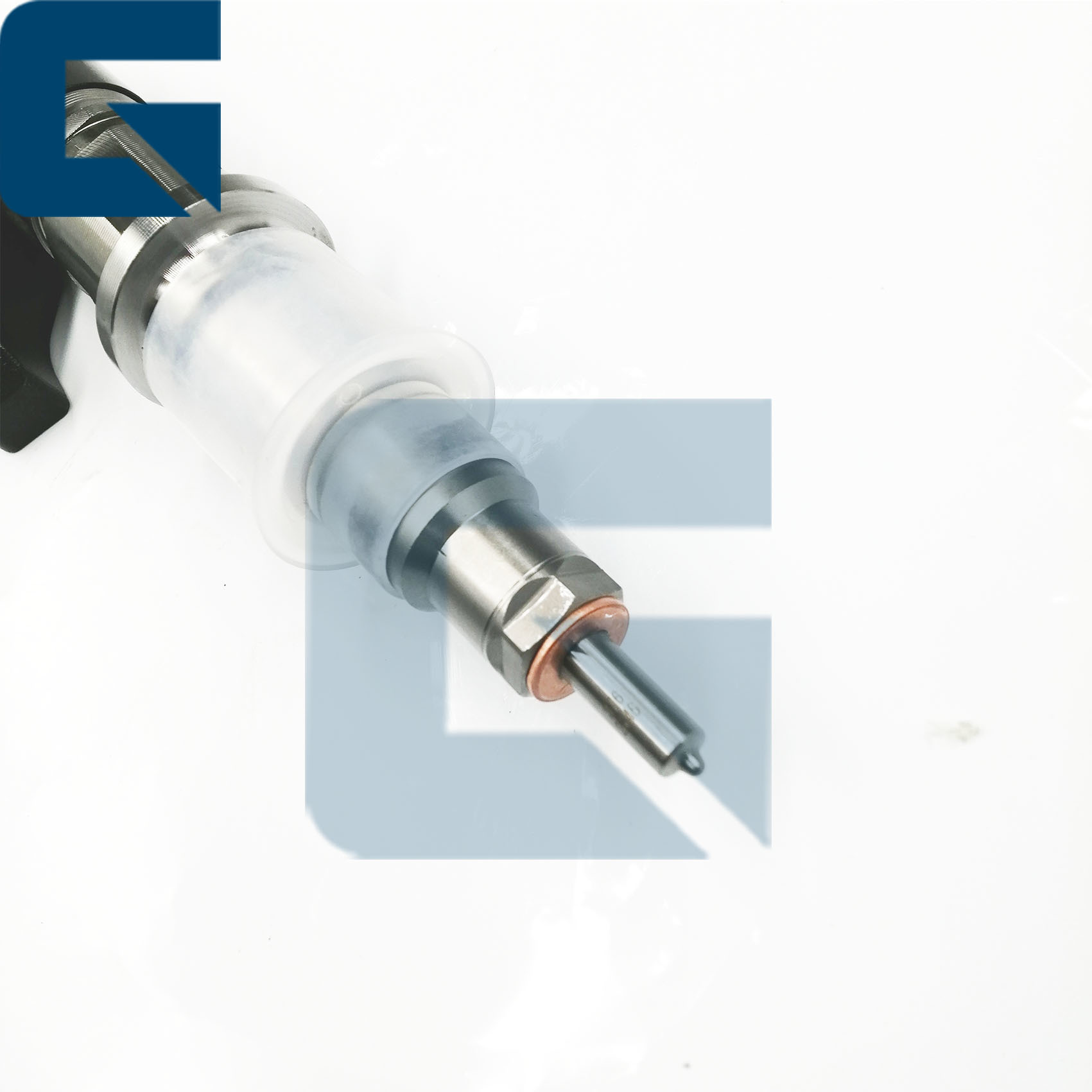

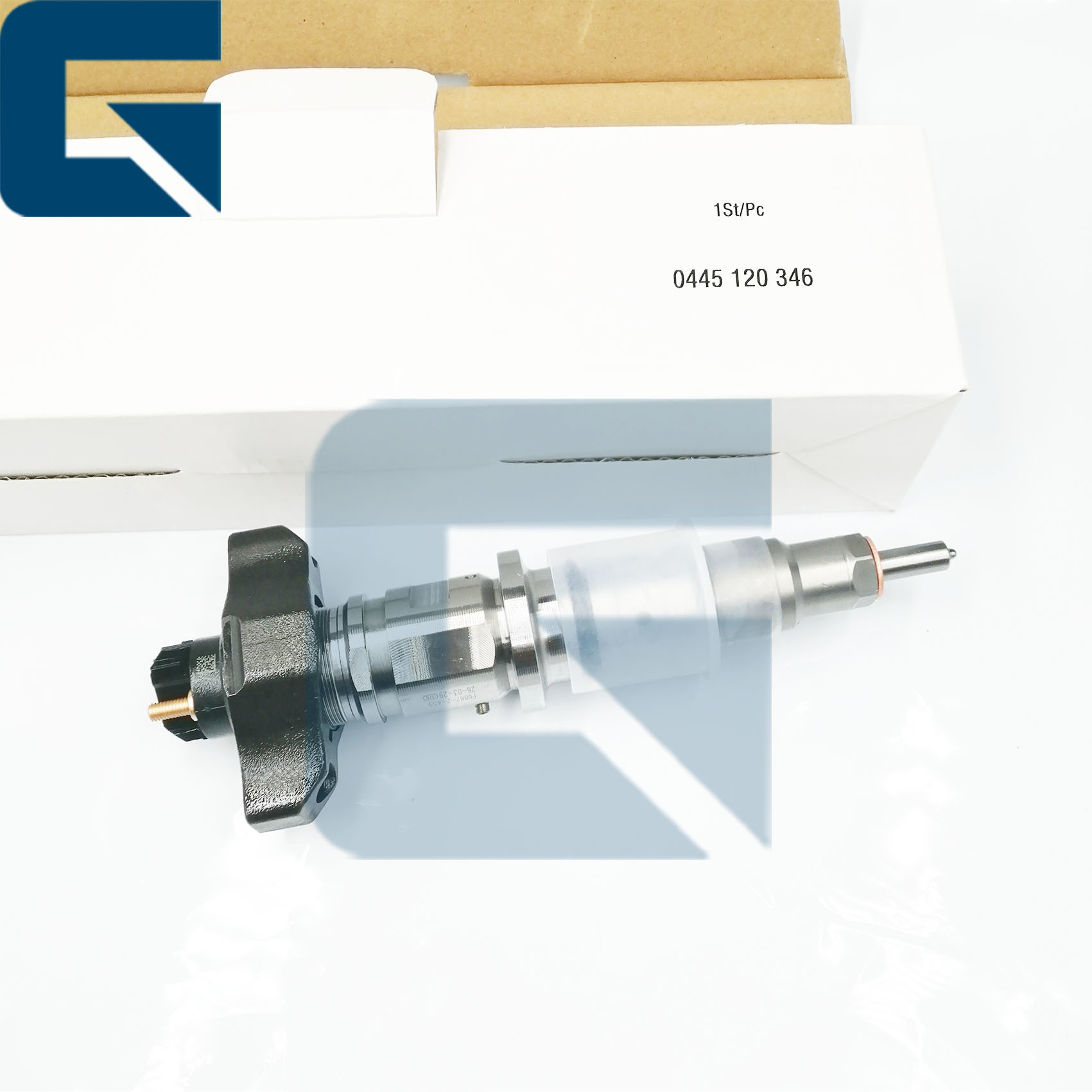

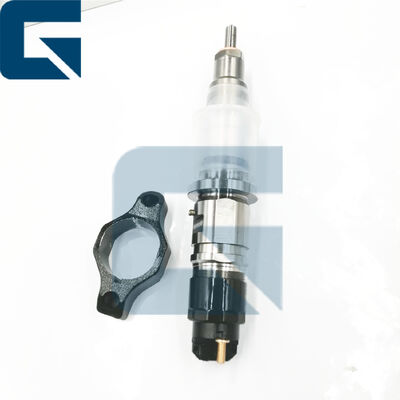

0445 120 346 0445120346 Common Rail Fuel Injector for Engine Parts

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: JIAJUE
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: Please send mail or WhatsApp
รายละเอียดการบรรจุ: 0445 120 346 0445120346 หัวฉีดน้ำมันเชื้อเพลิงคอมมอนเรลสำหรับชิ้นส่วนเครื่องยนต์บรรจุในบรรจุส่งออกมา
เวลาการส่งมอบ: 1 วันทำการ
เงื่อนไขการชำระเงิน: L/C, D/A, D/P, T/T ตะวันตกสหภาพ
สามารถในการผลิต: 1,000 ชิ้น / เดือน
ข้อมูลรายละเอียด
หมายเลขชิ้นส่วน: 0445 120 346 ขั้นต่ำ: 1
เน้น:

Common Rail fuel injector for diesel engines

,

Diesel engine fuel injector 0445120346

,

High-performance fuel injector with warranty


รายละเอียดสินค้า

Product Specifications
Product Name Fuel Injector
Part Number 0445 120 346
Brand Name JIAJUE
Condition Brand New
Availability Rich Stock
Approximate Weight 1KG
Size (for 1pc) 20cm x 5cm x 8cm
Delivery Methods DHL FedEx TNT UPS
Warranty 3 months
Shipment Dispatched within 24-48 hours
Product Testing & Quality Control
0445 120 346 0445120346 Common Rail Fuel Injector for Engine Parts 0 0445 120 346 0445120346 Common Rail Fuel Injector for Engine Parts 1
Related Products
0445 120 346 0445120346 Common Rail Fuel Injector for Engine Parts 2
Frequently Asked Questions
Q1: How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.
Q2: What precautions should I take before installing my fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.
Q3: Why is my engine still unusable after replacing the fuel injector?
This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Q4: Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, please provide your Engine Serial Number (ESN) for free verification.
Q5: How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations
  • Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion
Q6: How long will it take to receive my package after I make the payment?
Delivery time depends on your country, region, and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
1. Preparation: Clean the injector bores thoroughly. Ensure there is no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for any signs of pitting or erosion.
2. Lubrication: Apply clean engine oil to the three O-rings and the backup rings. Never use grease. Only use clean engine oil to ensure the seals slide in without tearing.
3. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
4. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Note: Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
5. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM to ensure precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in injector leading to insufficient starting oil pressure Inspect injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
